Phase One XT: Seek extraordinary
Known for their great resolving power and contrast even at large apertures, the optical design of Rodenstock HR lenses reduces diffraction and colour noise, even at the pixel density of the IQ4 150MP, providing further flexibility to the full frame medium format sensor.

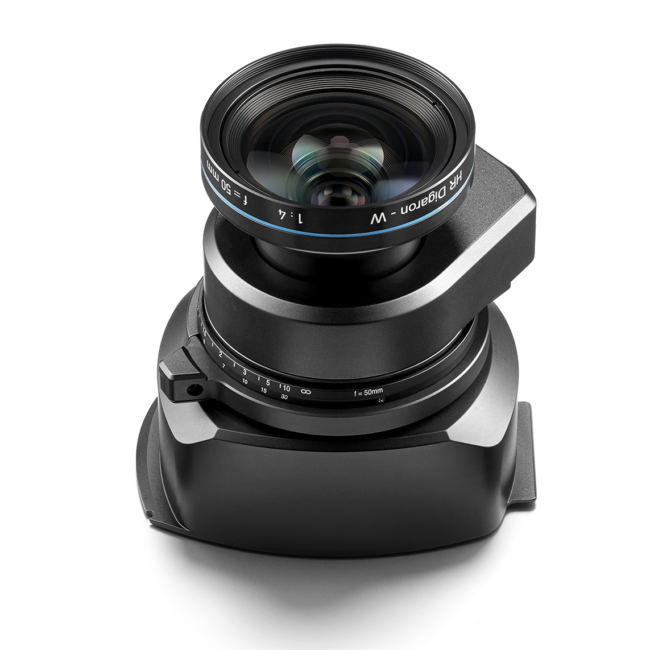

With Rodenstock as a strategic partner, the introduction of these exclusive, digitally integrated lenses is only the beginning of the XT Camera System lens range. Now with the XT 50mm lens, the 84° field of view produces extraordinary distortion free, medium-width images. It also has a very large image circle meaning that it can utilise the full extent of the shift movement on the the XT camera allowing for multi image panoramic stitching.
The XT lens family now stands with the current 23mm, 32mm, 50mm, 70mm & 90mm lenses. There is a focal length longer than 100mm in the works, more details on this as they come to hand.
At the heart of the XT – Rodenstock HR lenses is the X-Shutter. The X-Shutter is an intelligently integrated and electronically controlled shutter, born out of Phase One’s industrial applications and experience. The X-Shutter is purpose-built for the XT Camera System to allow for finer control in a smaller form factor. Powered by the IQ4, the X-Shutter shares in the ambition of the Infinity Platform for future growth and flexibility.
|Shutter Speed||60min - 1/1000sec|
|Angle of View||84°|
|Lens mount||Cambo WDS Compatible / 14-pin X-Shutter Interface|
|Shutter Type||Electro-magnetic with carbon fibre blades|
|Focus||Helical ultra-fine manual focus|
|Aperture Blades||Five curved blades|

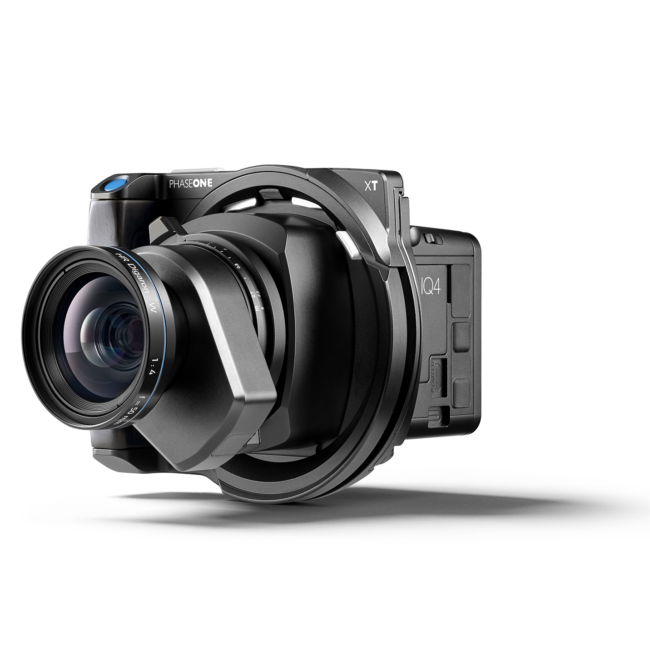

Phase One XT Camera Body
- Lens mount
- Cambo WDS Compatible / 14-pin X-Shutter Interface
- Back mount
- Phase One 645 / 14-pin IQ4 Interface
- Shutter button
- Dual action with customisable half-press
- Rear movements
- ±12mm shift in both horizontal & vertical plane
