Profoto enters the cinema market with uncompromising speed of use and limitless creativity
Profoto, the light shaping company, unveils the L1600D. With its unique state-of-the-art technology, it offers the world’s DOPs and Gaffers speed of use without limiting their craftsmanship and artistry.
Technology and design innovation bring speed of use

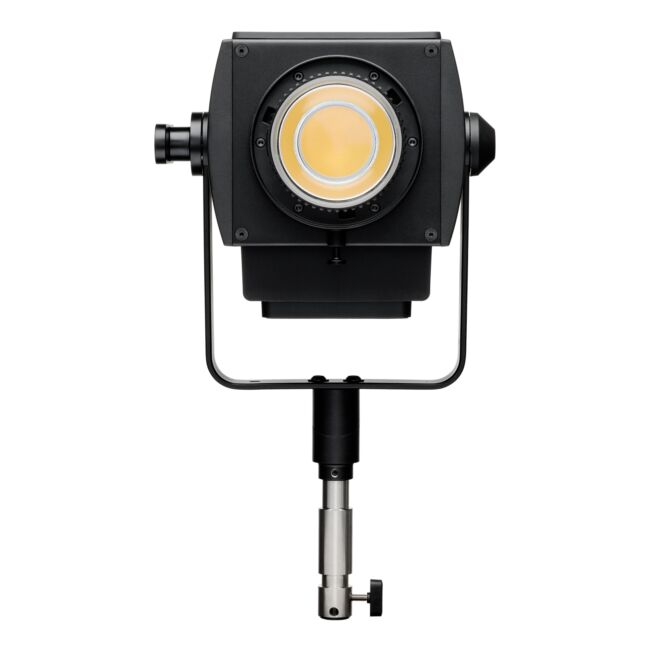

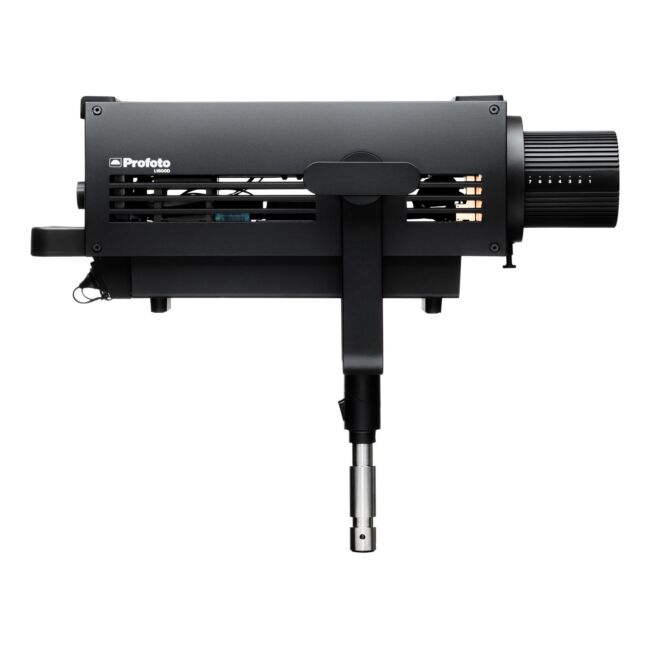

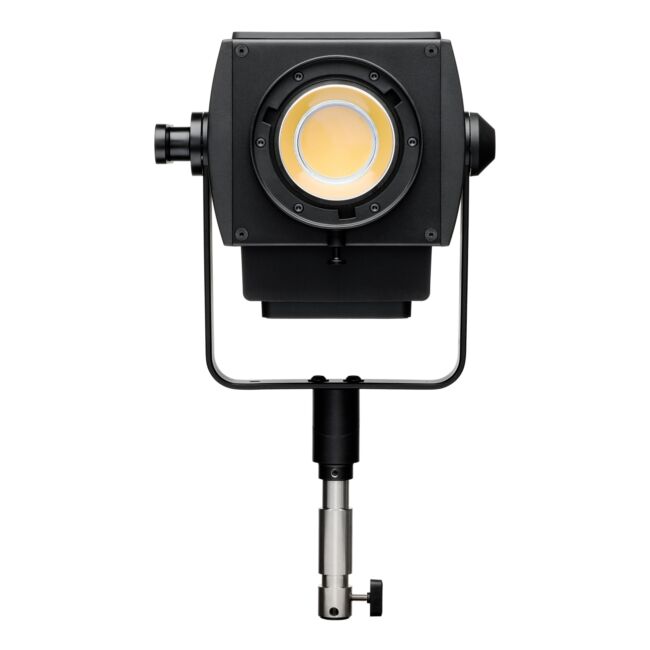

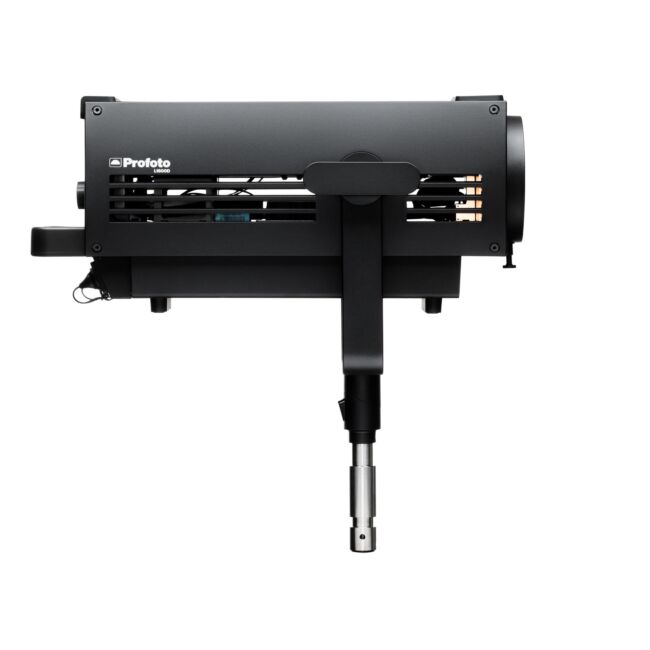

Profoto have worked hard refining their technology to ensure they introduce not only the best, but something unique that truly delivers customer value. The L1600D is a compact, all-in-one unit without a ballast. It brings an unparalleled power-to-size ratio. It is a new product category that they call Mono-LED.
Their patent-pending water-cooling system, HydroCTech™ is the heart of this compact Mono-LED. There is no floor unit; no more hauling heavy equipment around. It saves a lot of time on set and is more ergonomic to use.
Limitless creativity
The Profoto L1600D comes with dual mounting options; Profoto mount and Bowens mount. With the Profoto Light Shaping Tool system at the core, users will have access to an unmatched array of light modifiers. The L1600D also comes with a new take on the old-staple yoke, a patent-pending swivel functionality, which adds even more freedom of movement when setting the lights.
Next level efficiency
The L1600D offers the purest of light, and a lot of it, with the highest degree of light shaping possibilities. Profoto have created an impressively efficient piece of equipment with their Mono-LED technology. 97% of the electricity is harnessed and used from input to output, which is at least 20% more efficient compared to other solutions with ballast and head.

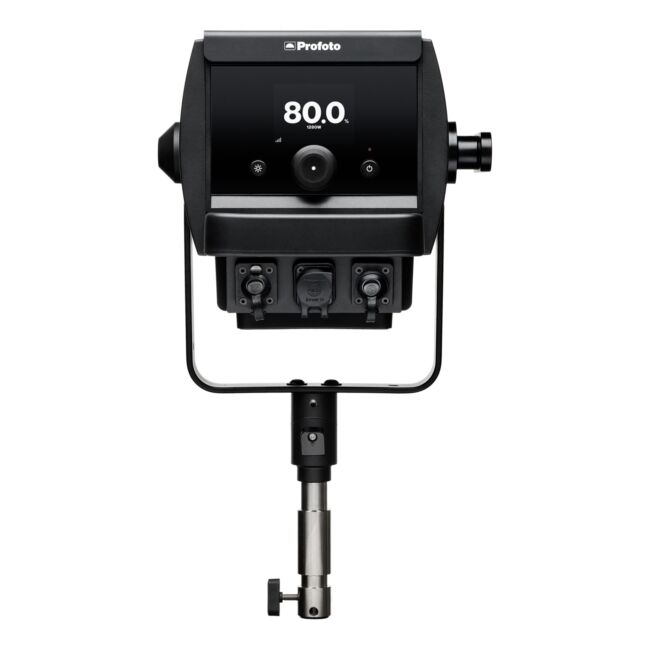

The IP54 classification adds to the build quality Profoto is known for, securing a resilient workhorse regardless of how challenging the situation on set might be. An intuitive user interface and wireless DMX drive efficiencies even harder.
Less time spent fiddling with buttons and settings means more time being creative.
An uncompromising light for the uncompromising professionals
The L1600D is for the experienced industry craftspeople who appreciate and understand the power of shaping light to achieve their cinematic visions. Profoto take their craft just as seriously as the uncompromising professionals in the cinema industry.
Specifications:
• Max power consumption: 1600W. 110-250v input. Integrated automatic and selectable current/power limiter.
• Colour temperature: 5700K
• Dimming: EXP, LOG, Linear. 0.1%-100%, with super low dimming.
• Flicker: Flicker free at any frame rate.
• TLCI/CRI: 97
• Power draw: Integrated auto current draw limit is 15A at low input voltage.
• Power supply: Integrated, worldwide 100-240v 50-60Hz (e.g.1 phase "230v50hz, 2-phase-208v60hz, 1-phase 120v60hz, 240v split phase).

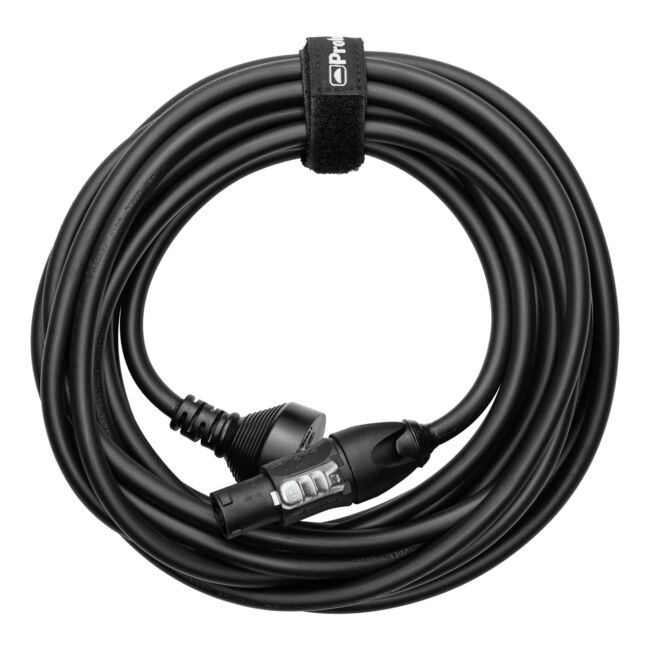

• Mains: Neutrik powercon connector, 7m cable.
• Cooling: HydroCTech™ Liquid Cooling System (patent pending)
• Fans: 2x140mm silent fans.
• IP rating: IP54.
Connectivity:
• Lumen radio/CRMX: TimoTwo integrated
• DMX: XLR 5pin in/out, integrated software controllable termination.
• Bluetooth: Profoto control app, Lumenair app, Blackout app.
• Profoto Air Radio: Remote control range 100m.
• USB: USB-C (Service).
Measurements & weight:
• Light including swivel yoke: 11.7kg

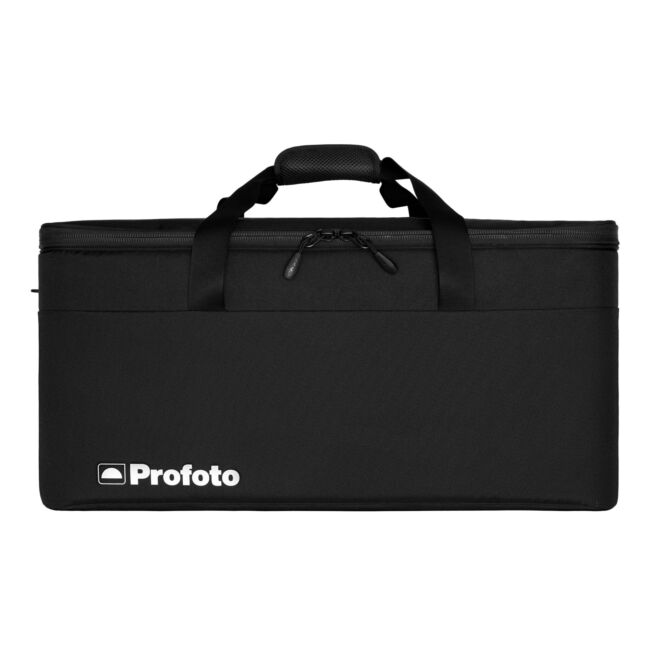

• Light, swivel yoke, mains cable, Boost reflector and transportation bag: 14kg
• Length with built in reflector: 50cm
• Length with Profoto mount: 60cm
• Length with Boost reflector: 85cm
• Width: 26cm
• Height: 29cm
Photometrics With Boost reflector 12˚:
• 5m: 49000 lux; 1m diameter
• 7m: 25400 lux; 1.5m diameter
• 10m: 12200 lux; 2m diameter
• 15m: 5480 lux; 3.6m diameter
Photometrics With built in wide reflector 60˚:
• 5m: 3850 lux; 5.6m diameter
• 7m: 2160 lux; 7.5m diameter
• 10m: 1130 lux; 11m diameter
• 15m: 670 lux; 16.5m diameter
