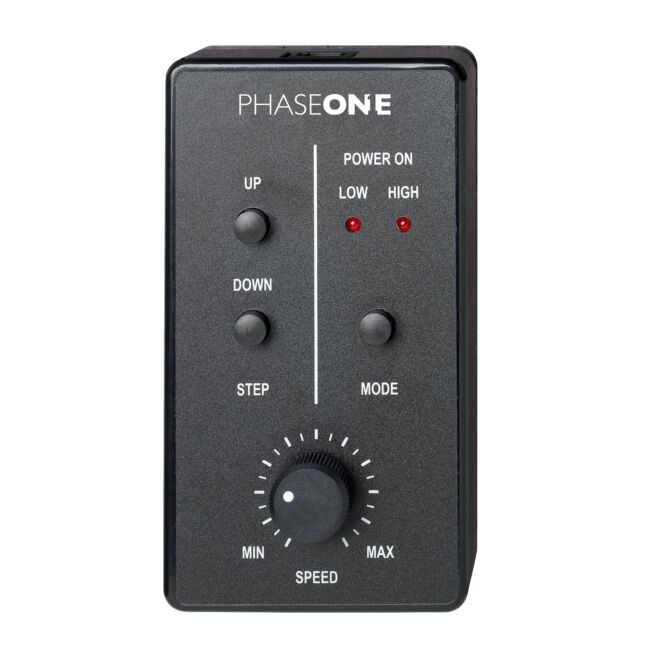

Vertical movement is motorised and is controlled with a wired remote control unit with extended speed and direction controls.

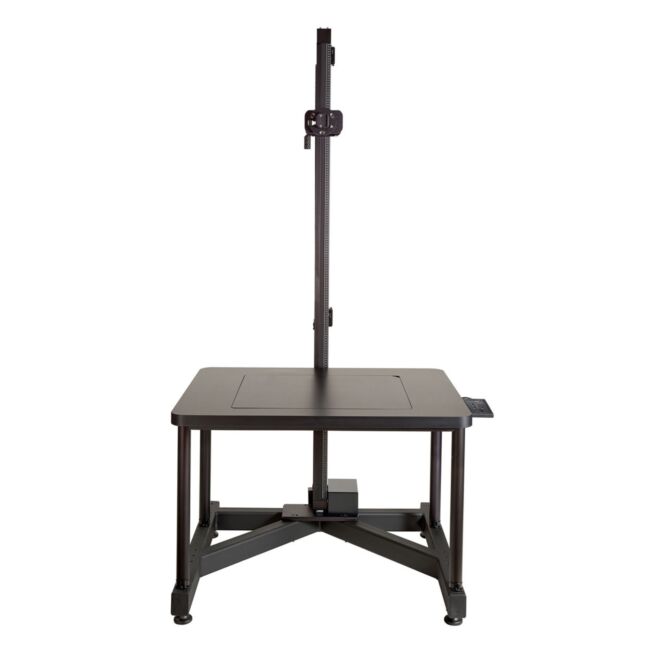

The new standard of AutoColumn copy stands, the Phase One RPS 2300XL, is designed with motorised AutoColumn technology to accomodate for efficient
work with the iXH 150MP and  iXG 100MP camera systems and Capture One CH.

The Phase One RPS 2300XL features high precision camera positioning, and a geared movable camera arm. A camera leveling head secures precise and quick
positioning.

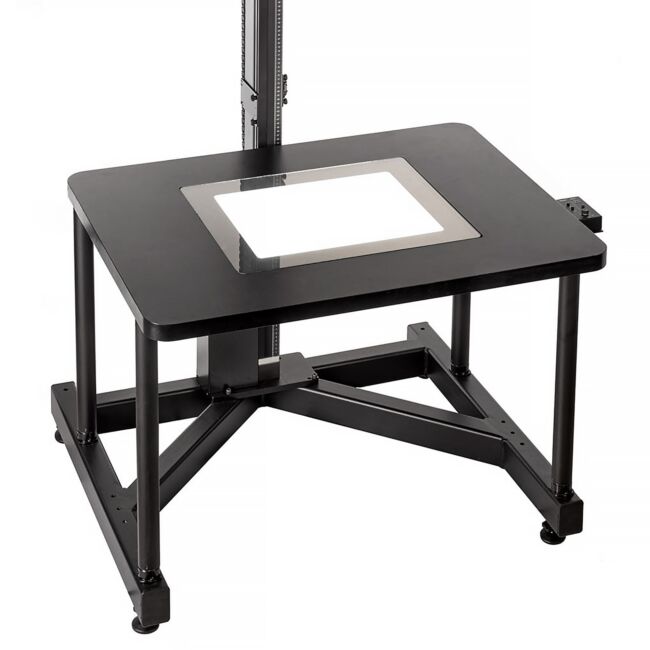

An LED lightbox baseboard insert is available for transparency scanning.

Wall mount options are available for the 2300XL column.

AutoPPI
Phase One AutoPPI is an automated camera and column positioning feature designed primarily for cultural heritage, archive, and reprographic digitisation. When paired with motorised Phase One AutoColumn copy stand and Capture One CH software, it allows operators to instantly set a precise capture resolution

The AutoPPI feature will autofocus on the target and once the focus is achieved, the camera will move automatically on the copy stand to reach the desired resolution. Finally, the camera will autofocus on the target.

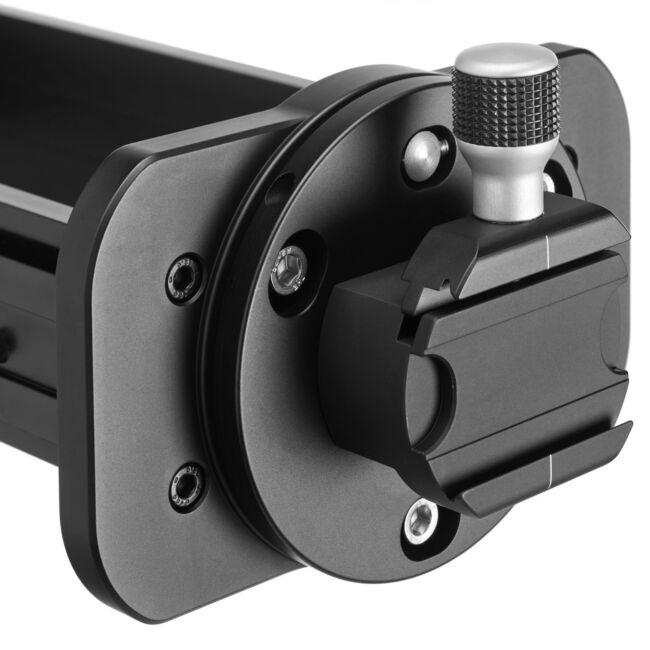

Prevision positioning with RPS-180 levelling head
The RPS-180 attaches to the frontplate of the RPS column and enables levelling of the camera in 3 directions. It has adjustment of the horizontal plane of 5 degrees and adjustment of the vertical plane of 5 degrees. It also has rotational adjustment.

It features an (ARCA compatible) dove tail and comes with a 1/4" quick release plate. Dove tail equipped cameras, including Phase One iXH cameras, attach directly to the RPS-180 without the need for a QR plate.

Phase One 2300XL Copy Stand Key features:
- Motorised vertical height adjustment - 2 main speeds, incrementally adustable
- Fine geared horizontal adjustable camera arm
- Adjustable speed of the motor

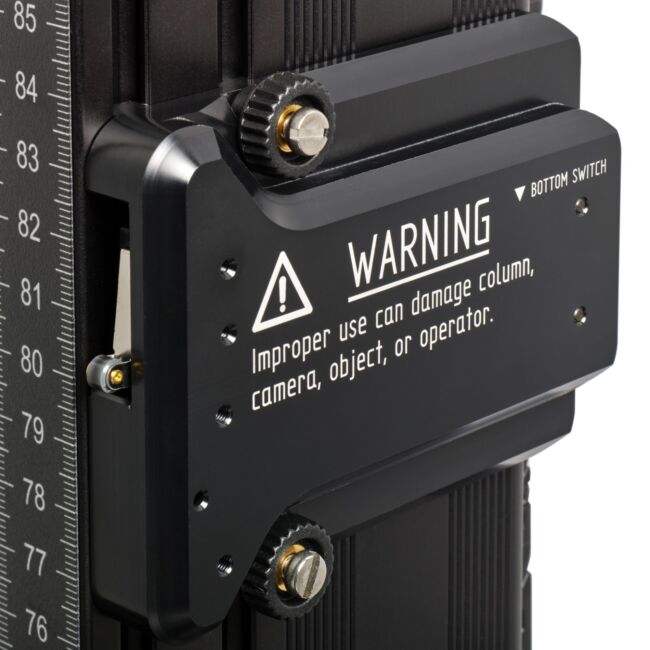

- Automatic endstops to prevent camera exceeding desired position
- Self-locking vertical position
- Reinforced Aluminium column- Levelling feet under base
- Mounts for baseboard are provided on the base
- Baseboard fitting onto base
- RPS-222 base extenders.
- an optional RPS-175 can extend the camera arm of the Autocolumn system by 180mm over the baseboard.

Specifications:
- Vertical adjustment: max.160 cm
- Horizontal adjustment: 24 cm
- Column length: 190 cm
- Maximum load: 10 kg

Dimensions:
Base: 100 x 85 x 13 cm
Board: 100 x 75 cm
Height Base + Column: 2.3m
Height Baseboard: 20 cm above floor or 76 cm when using included extenders.
