P1 C 72494000 01

Phase One

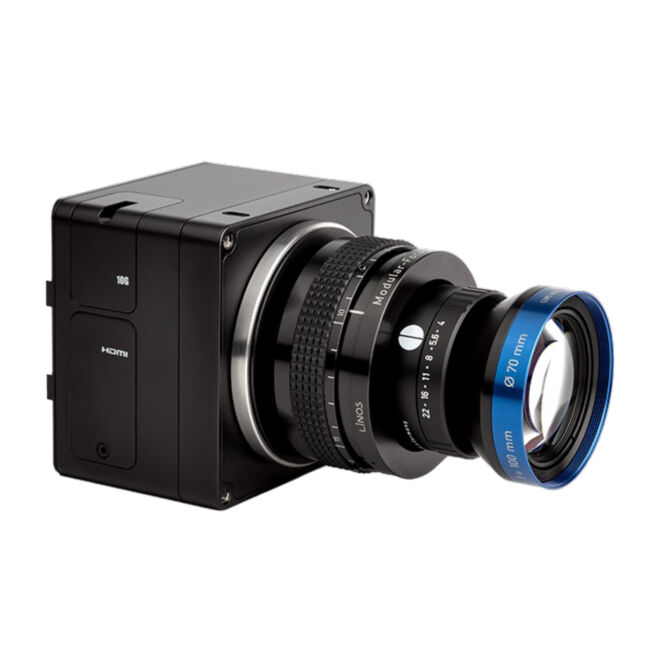

Phase One RC100 100MP reprographic camera system with Linos inspec.x L 60mm lens - Premium Kit

Contact us for price

The Phase One RC100 is a 100 megapixel, budget friendly, camera designed for high-volume digitising workflows, especially in heritage and cultural environments.

Paired with a 60mm lens at 400ppi, it covers an area larger than A2 and is perfect for objects such as, flat A3 documents, newspapers, maps and drawings.

Industrial-grade design, with no moving parts and an electronic shutter, allow virtually unlimited number of lifetime actuations. USB-c and 10G connectivity provide maximum flexibility, smooth Live Preview and high capture rate.

The RC100 integrates seamlessly with Capture One CH and NimbusQA for robust image analysis workflows, and supports the Phase One D8+ LED lighting system as well as third-party continuous lighting setups. Its Arca-Swiss compatible mount works directly with Phase One AutoColumn copy stands, and an optional L-Bracket provides precise camera rotation around the lens axis.

The RC100 is an out of the box FADGI 4-star compliant imaging system for digital preservation.

Kit includes:

• Phase One RC100 100 megapixel body
• Linos inspec.x L 4.0/60 lens (manual focus) - 49mm filter size (Image Circle 70mm)
(5 Years Warranty, includes High Priority Service providing loan equipment in case of equipment failure)
>> USB-C and 10G Ethernet connectivity (applicable SFP+ required: ASF-10G-T or AXS85-192-M3 compatible)
• USB-A to USB-C cable 4.6m
• Hand Release unit with 30cm cable with Trigger extension 5m - Lemo connector
• Power Supply 24V and cable 5m - Lemo connector
• Phase One Visible Dust Cleaning kit
• RC100 Installation guide & Phase One Warranties booklet
• Capture One CH (for 4 users)

Product code P1C-72494000

Phase One RC100 Features:

— Sensor size: 43.9 x 32.9mm, 11,656 x 8,742 pixels @ 3.76 microns
— Colour depth (per channel): 16 bit / 14 bit
— ISO range: 50-1,600
— Dynamic range (f-stop): 15
— Capture rate (FPS): 2.0
— Lens mount: M72mm, Phase One mount
— Shutter type: On sensor Electronic Shutter
— Shutter speed: 1/4000 - 1 hour
— Focus positions: Manual
— Focus control: Manual
— Mechanical mounts: Arca-Swiss Dovetail, 3/8”, optional VHQ L-Bracket
— Interface USB-C / SFP+ Module (1G/10G)
— Triggering options: Hand release, host capture from software, foot pedal
— Live View / HDMI 1920 x 1080
— Data storage: Tethered to Capture One CH
— Dimensions (mm) with M72mm mount (exc lens): 90x90x73 (90x90x103 with heat sink)
— Weight with M72mm mount excluding lens and mechanical mounts: 630g
— Operational temp range (c): -10 to 40
— Humidity (%): 15-80 (office environment)
— Minimum focusing distance (cm): 55 mm
