The 5467 RB 5020 lighting unit is suitable for all copy stands of the R2 System.

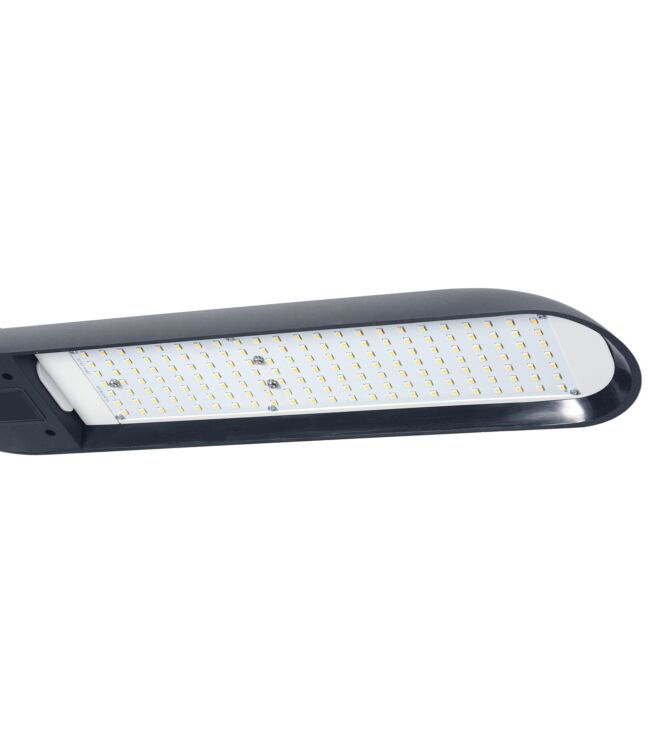

LED daylight lighting unit with two light banks for even and soft illumination. Emitted light has absolutely no IR and UV content. DC operation provides for flicker free light without residual ripple. Each light is equipped with 105 selected white SMD LEDs. Lights can be dimmed separately or in conjunction. Includes removable diffusing cover.

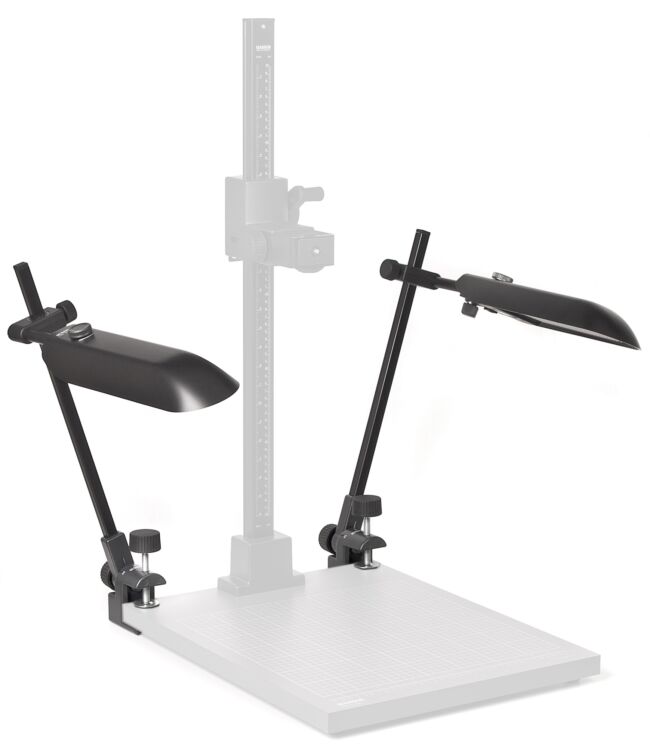

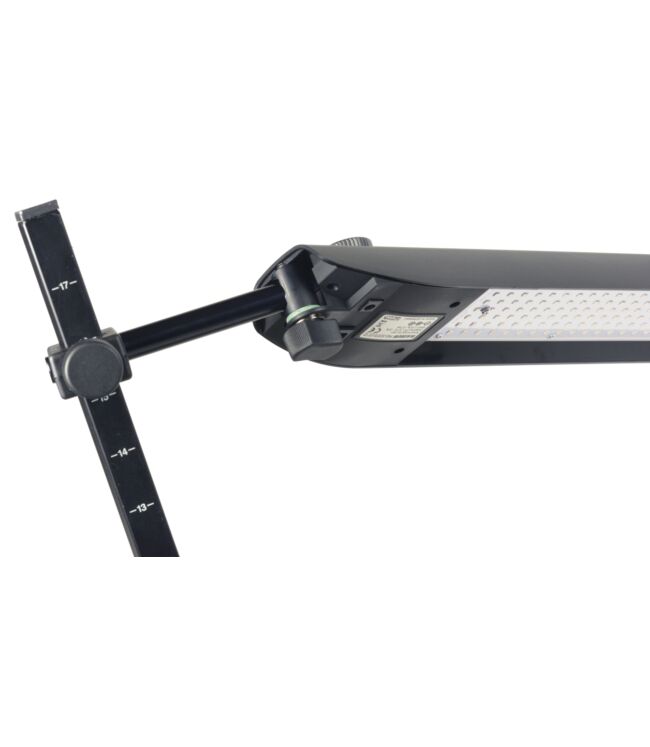

Lights can be tilted, swivelled and adjusted in height. The vertical lamp arms are tiltable with detents and are mounted to the copy stand base with strong die-cast clamp bases, clamp width up to 48 mm.

Specifications:
— LED arrays: 2 x 105 SMD LEDs
— Colour temperature: 5700 K
— Colour rendition index: CRI: >95
— LED angle of radiation: 100°
— Illumination on a 9x12" flat subject 4300 lux
— Power consumption: 2 x ≤ 17 W
— Operating voltage: 220-240 V, 50/60 Hz or 120/277 V, 50/60 Hz
— Light emitting area of one light: 58 x 16.5 cm
— Vertical arms: 76 cm (29.9 in.), 20 x 20 mm edge dimension
— Mains power leads: approx. 2.40 m each

Optional Accessories: Kaiser 5641 Polarising inserts for 5638, 5640 and 5652
