Kaiser 5308 R2 CP 24D Portable Image Capturing Set with Copy Stand and LED Lights

$2,200.00

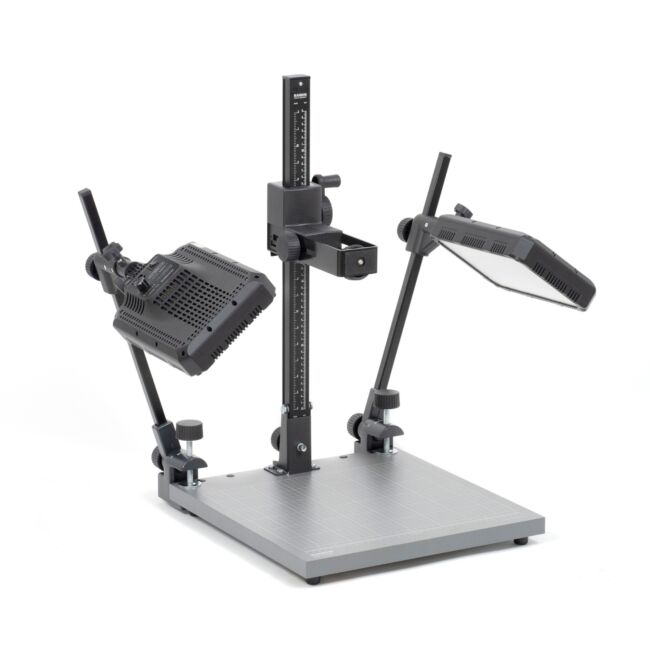

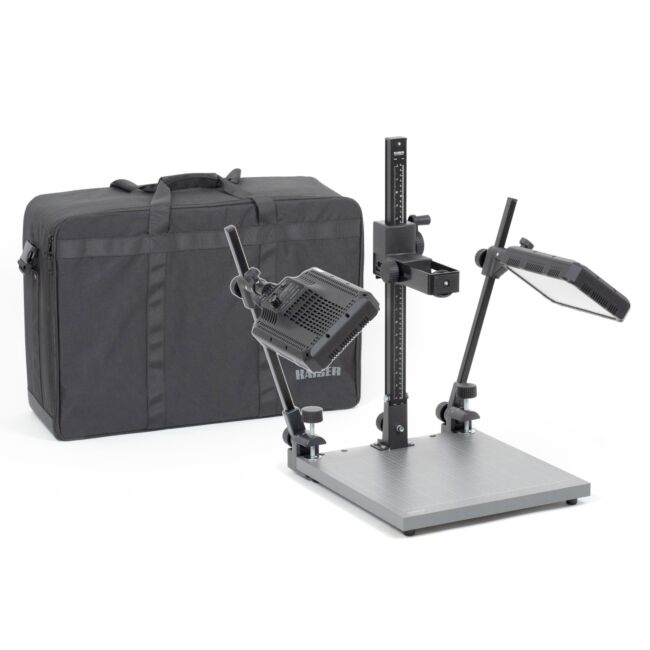

The Kaiser 5308 R2 CP 24D is a foldable and portable copy stand with PL 24D daylight soft lighting units and it comes in a strong carry case. This system is  designed for use with phones or small cameras.

RS 2 CP copy stand (5301) Copy Stand Features and Specifications:
— Non-reflective matt grey baseboard with printed fine grid and centimetre / inch scale
— Matt-black anodised aluminium section tube column with cm/inch scale
— Hand-cranked height adjustment by friction drive in plastic bearings
— Horizontally adjustable camera arm
— Column folds down on baseboard
— Baseboard (WxHxD): approx. 40x25x42 cm (15.7x1x16.5 in.)
— Column height: approx. 60 cm (23.6 in.)
— Maximum load: 1.5 kg

PL 24D Lighting Unit Features and Specifications:

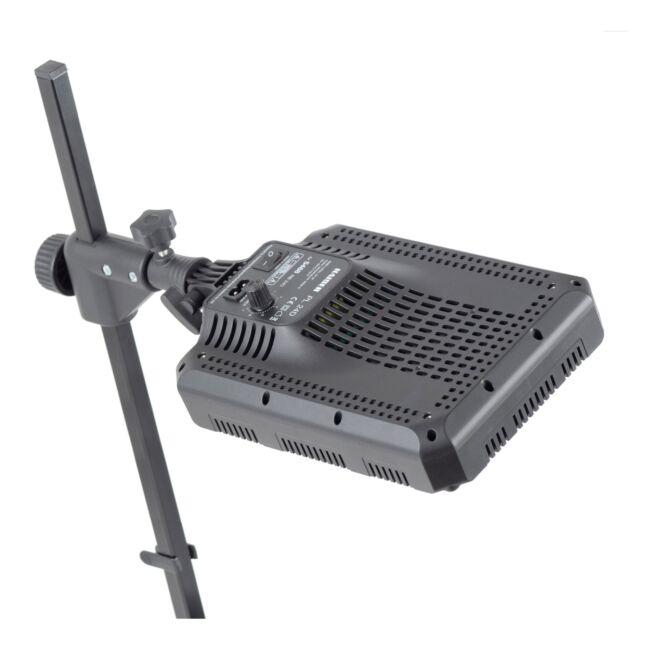

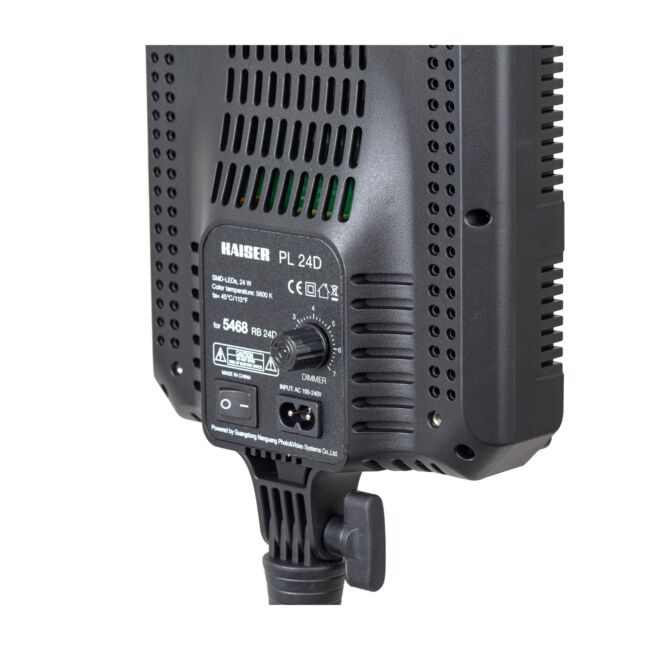

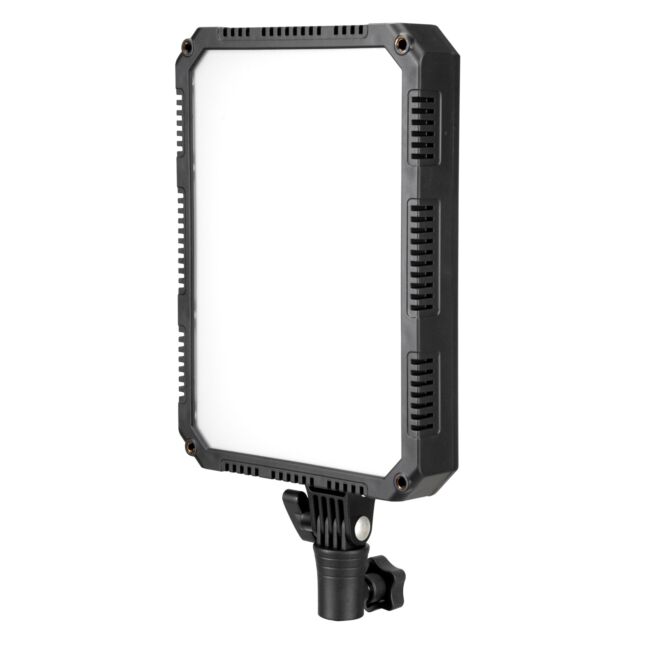

Daylight-type LED lighting unit with two PL 24D soft lights, each 24 watts, for even and soft illumination. Dimmable. Vertical arms of 47cm with 16 x 16 mm (0.6 x 0.6 in.) cross section and strong cast aluminium clamp bases.
— Light source: 2 x 120 High-CRI LEDs (SMD)
—Colour temperature: 5600 Kelvin
—Colour rendition index: CRI: 95
—Angle of radiation: 80°
—Light emitting area of one light: 21.4 x 14.7 cm (8.4 x 5.8 in.)
— Max. illumination*: 3600 lux (*based on uniform illumination of a 8.5 x 12 in. flat subject)
— Power consumption: 2 x 24 W


Product code KAI-5308

* This is an oversize item and may incur additional freight fees

The Kaiser 5308 R2 CP 24D is a foldable and portable copy stand with PL 24D daylight soft lighting units and it comes in a strong carry case. This system is designed for use with phones or small cameras.

RS 2 CP copy stand (5301) Copy Stand Features and Specifications:
— Non-reflective matt grey baseboard with printed fine grid and centimetre / inch scale
— Matt-black anodised aluminium section tube column with cm/inch scale
— Hand-cranked height adjustment by friction drive in plastic bearings
— Horizontally adjustable camera arm
— Column folds down on baseboard
— Baseboard (WxHxD): approx. 40x25x42 cm (15.7x1x16.5 in.)
— Column height: approx. 60 cm (23.6 in.)
— Maximum load: 1.5 kg

PL 24D Lighting Unit Features and Specifications:
Daylight-type LED lighting unit with two PL 24D soft lights, each 24 watts, for even and soft illumination. Dimmable. Vertical arms of 47cm with 16 x 16 mm (0.6 x 0.6 in.) cross section and strong cast aluminium clamp bases.
— Light source: 2 x 120 High-CRI LEDs (SMD)
—Colour temperature: 5600 Kelvin
—Colour rendition index: CRI: 95
—Angle of radiation: 80°
—Light emitting area of one light: 21.4 x 14.7 cm (8.4 x 5.8 in.)
— Max. illumination*: 3600 lux (*based on uniform illumination of a 8.5 x 12 in. flat subject)
— Power consumption: 2 x 24 W


Accessories:

Kaiser 6015 - Smartphone Mount
