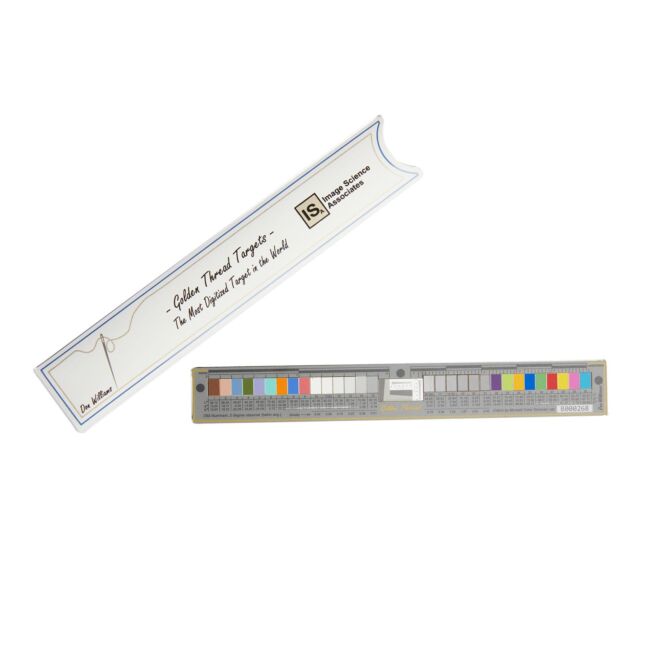

The Image Science Associates Object Level Target is designed to fit discreetly alongside objects being digitised without adding significant image data and is intended to enable image digitisation quality control and workflow monitoring.
Sheet-metal mounted, this target provides a means to measure sampling rate (dpi), resolution, color, tone, noise and color channel misregistration. Compliant with existing ISO standard’s protocols when measured using GoldenThread.

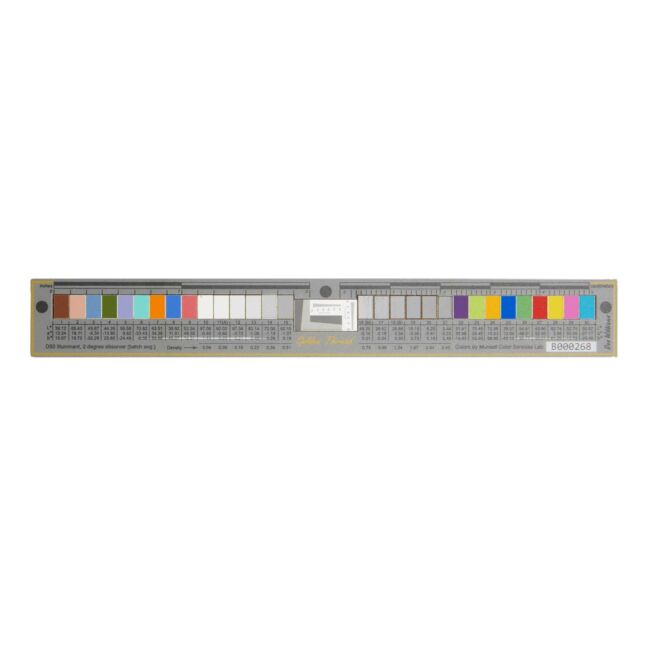

It has the identical 18 color patches as the GretagMacbeth™ ColorChecker®, plus 12 spectrally neutral gray patches to assess correct exposure and white balance in close-up or macro photography applications.
All patches are annotated with their L*a*b* values so, if in the future, doubt arises about the color genealogy of the object, and the target is included in the image, the user has a clear path back to the colors and tones of the original object. One can also quickly check the annotated L*a*b* values of the target against those provided by commercial image editing software
There are also vertical and horizontal slanted edge targets near the center to calculate the spatial frequency response (SFR) along with bar-type wedge features to quickly judge spatial resolution visually (200-850 dpi) or compare against software calculated results
Metric- and English-based rulers are provided to confirm sampling rate.
Target are available in 3 sizes:
- 0.5X Target: 117.5 mm x 16 mm x 2.4mm
- 1.0X Taregt: 235 x 254 x 2.4mm
- 2X Target: 470 mm x 44.5 x 2.4mm
