Vertical movement is mechanical and is controlled with a spindle driven height adjustment at the baseboard.

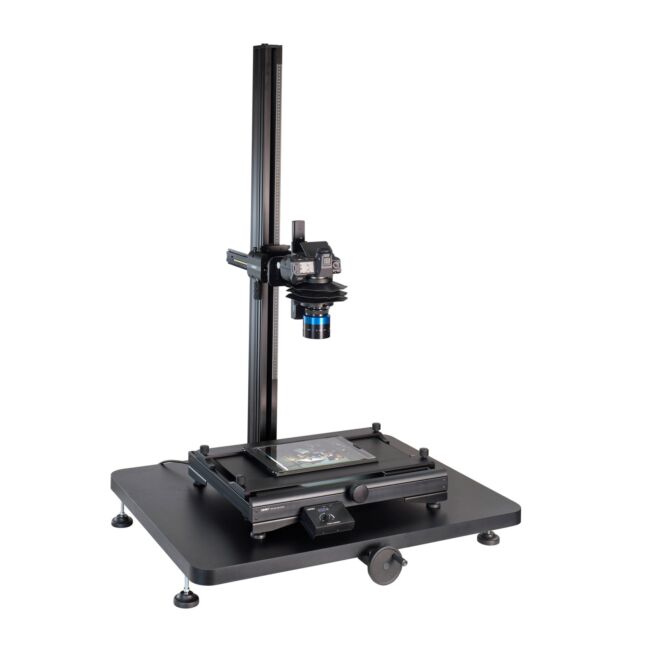

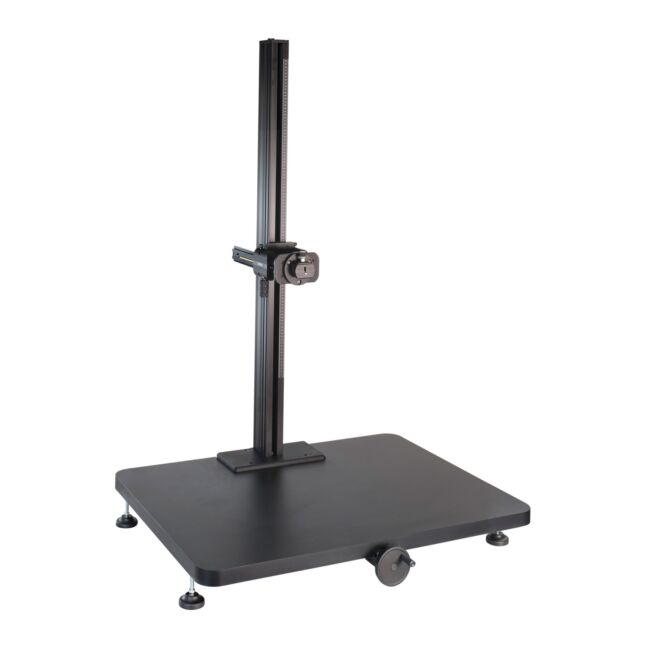

The Cambo RPS-260 a mechanical Copy Stand. Its geared cross arm comes with an integrated camera leveller to facilitate absolute parallelism between sensor and object. The lockable crank is conveniently positioned at table level.

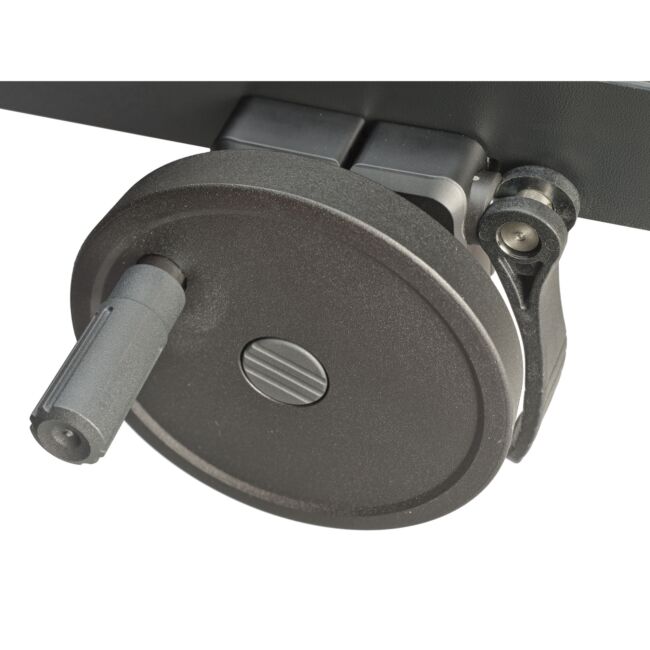

The Cambo RPS-260 is a professional table to size copy stand offering a stable foundation for your digitisation work. It has the distinction of a hand wheel at table level that engages to a spindle driven height adjustment. Thanks to this it always operates at a comfortable working height, without the need to reach over the base board or to touch the camera. Furthermore it is smooth and accurate, which enables critical focusing by height adjustment.

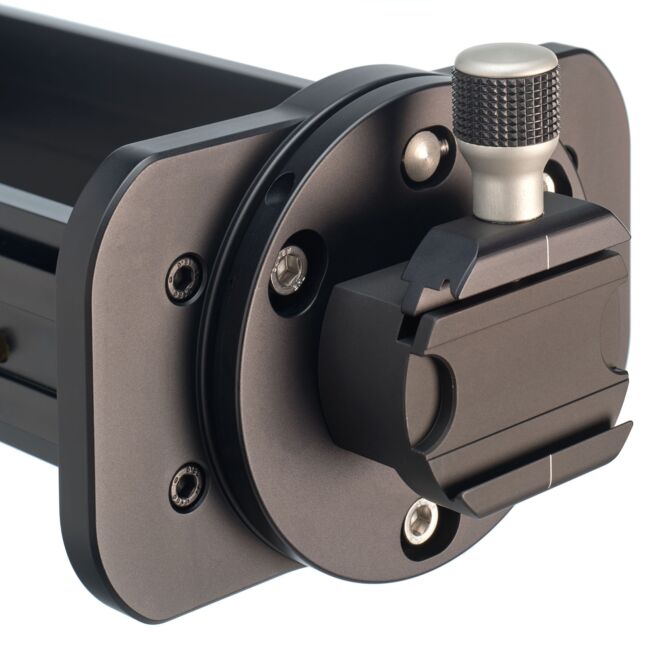

Sensor and object need to be perfectly parallel to achieve the highest possible quality. Therefore the RPS-260 features an integrated levelling head. This facilitates easy alignment of camera and object. It's mounted to a gear driven cross arm which enables easy camera positioning.

Cambo RPS-260 Key features:
— Mechanical vertical height adjustment
— Fine adjustable camera arm
— Reinforced aluminium column
— Vibration absorber inside column
— Levelling feet under base

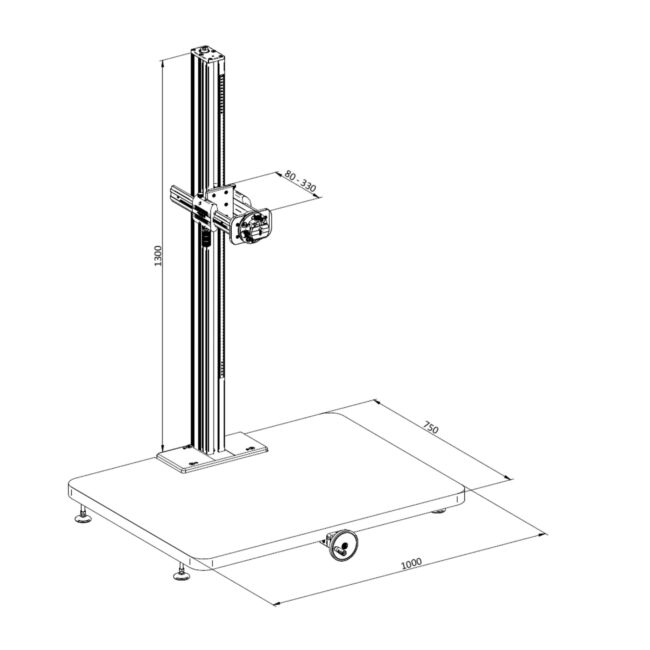

Specifications:
— Column Height 1300mm
— Total Height 1430mm
— Column Stroke 1050mm
— Cross Arm Stroke 250mm
— Maximum Load 10kg
— Base Board 100 x 75cm
