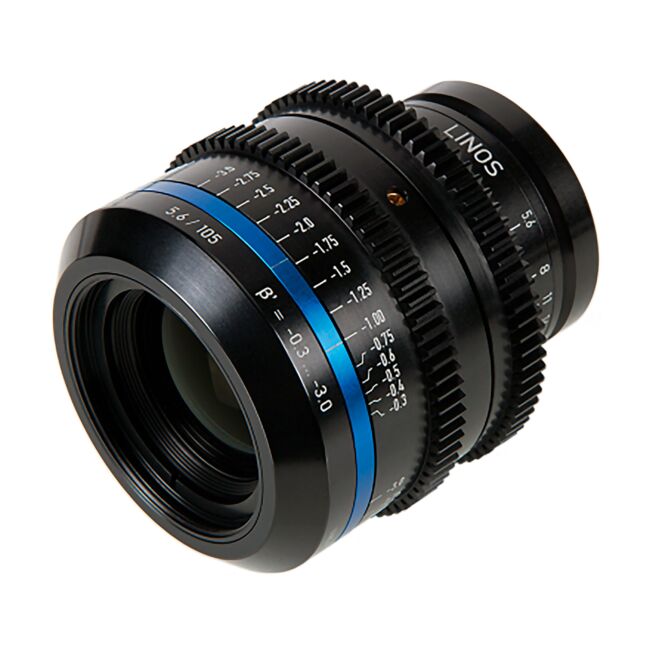

The inspec.x L float lenses combine the field-proven imaging performance of the inspec.x L Series with newly developed mechanics to cover a large magnification range with only one lens. By using floating element optics, the inspec.x float lenses achieve high performance over an extremely wide magnification range from 0.3x to 3.0x respectively.

— Focal Length: 105mm
— Aperture: f5.6 - f11
— Working distance: 100-420mm
— Image Circle: 82mm
— Filter thread: 58mm
— Interface / Lens Mount: V-Groove
— Weight: 440g

— Ideal for 12k and 16k sensors
— Geared rings for magnification and aperture
— Extreme magnification range of -0.3x … -3x
— Floating element optics
— Perfect match with 5 µm pixel size
— Spectral range: 400-750 nm
— Distortion: < 0.4%

NB: Requires Cambo V-Groove lensplate WHF-4 or ACB-V
