Available in four versions

Linos Inspec.x L 5.6/105 1x

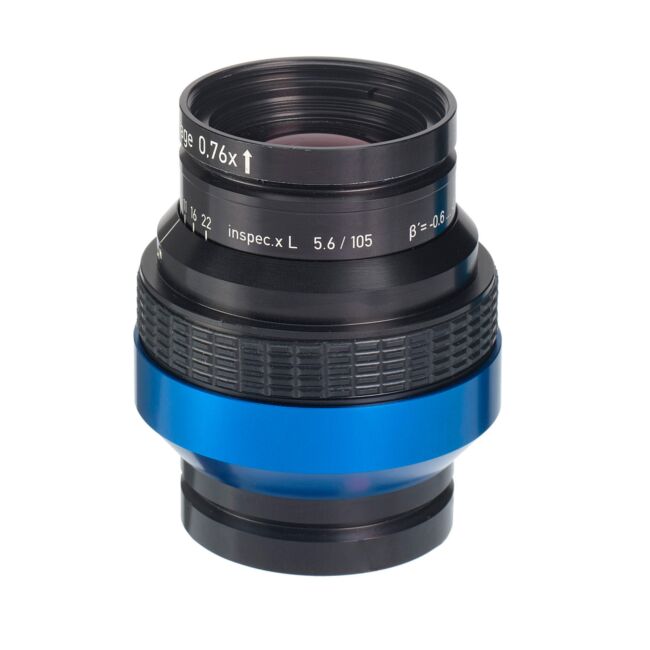

Linos Inspec.x L 5.6/105 0.76x
Linos Inspec.x L 5.6/105 0.5x
Linos Inspec.x L 5.6/105 0.33x

The inspec.x L Series was developed to meet the highest requirements in industrial image processing with very large sensors. This lens series shows even contrast and resolution over an image circle of up to 82 mm. The field-proven performance makes these lenses a perfect match for sensors like the popular 12k/5 µm and 16k/5 µm line-scan sensors. Very large area scan sensors also benefit from the high resolution, low distortion and excellent colour correction of these lenses.

The four variants of the inspec.x L 5.6/105 are optimized for magnifications of 0.33x, 0.5x, 0.76x and 1x respectively. The V-Groove interface at both ends of the lens enables adjustment to the best azimuth position and use of the lens in retro position for magnifications up to 3x. All lenses feature lockable iris and are engineered for use in harsh industrial environment.

— Focal Length: 105mm
— Aperture: f5.6 - f22
— Magnification range: 0.25 ... 0.45
— Optimised Magnification: 0.33x
— Working distance: 100-420mm
— Image Circle: 82mm
— Filter thread: 58mm
— Interface / Lens Mount: V-Groove
— Weight: 440g

— Full-metal barrel
— Lockable aperture
— Perfect match with 5 µm pixel size
— Spectral range: 400-750 nm
— Distortion: < 0.4%

NB: Requires Cambo V-Groove lensplate WHF-4 or ACB-V

0703-085-000-20
