Expand the usability of your camera system

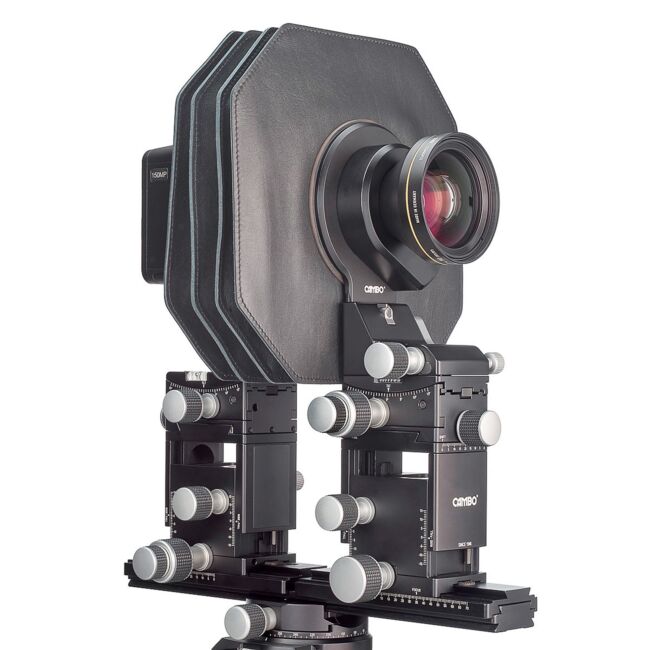

Maximum Versatility. The Actus-MV is a fully adjustable view camera that is still compact enough to be your companion for use in the field. It works equally well with digital backs, mirrorless camera bodies and DSLRs. No matter how your photography develops, the Actus-MV is ready for it and will evolve alongside camera and digital back technology.
Actus-MV (base): A solid foundation in which all camera movements are integrated. To facilitate packing, front and rear standard can be separated from the optical bench without requiring tools.

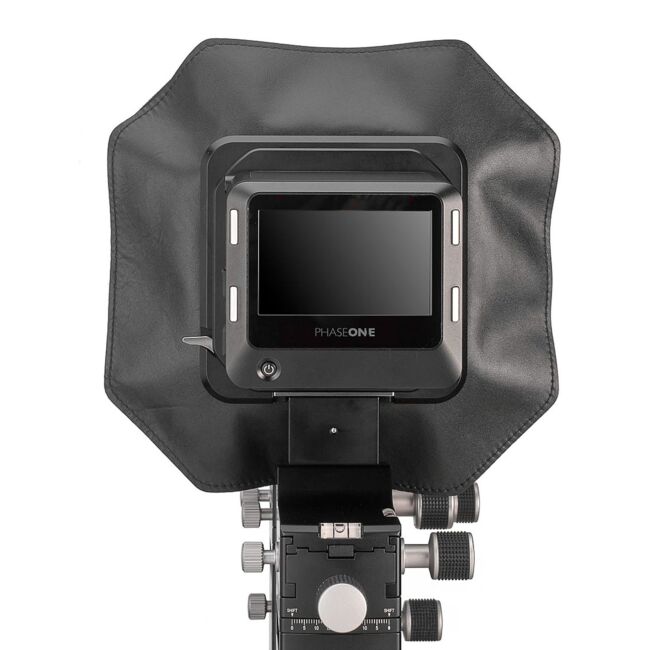

The rear standard can be completed with a choice of adapters for virtually every digital back available. To enable the use of a camera body as your digital back, Cambo offer bayonets for most DSLR and Mirrorless cameras on the market.
At the front standard the Actus-MV accepts all lens plates from the vast Actus range. Including medium format adapters, lens plates for X-Shutter lenses and (legacy) leaf shutter lenses. Furthermore, Cambo offers the steadily expanding range of Actar lenses.
• View camera movement for selective sharpness
• Rear Shift movement to stitch wider angle images
• Focal plane shifts to increase file size
• Rotation Landscape/portrait built-in
• Built-in macro extension
• Use of various lens designs
• Interchangeable bellows options
• Enhance your creativity with the Cambo ACTUS
• Use tilts and swings to place exact sharpness where needed
• Create selective optical unsharpness
• Use more of the image circle of your lenses
• Stitch your images without changing the lens position
• Focus closer and enlarge your subject without extension rings
• Experiment with other system lenses and medium format lenses
• Ideal for use on location, minimal size and weight
• Experience the possibilities of the Cambo ACTUS
• Small size for easy portability - see image above

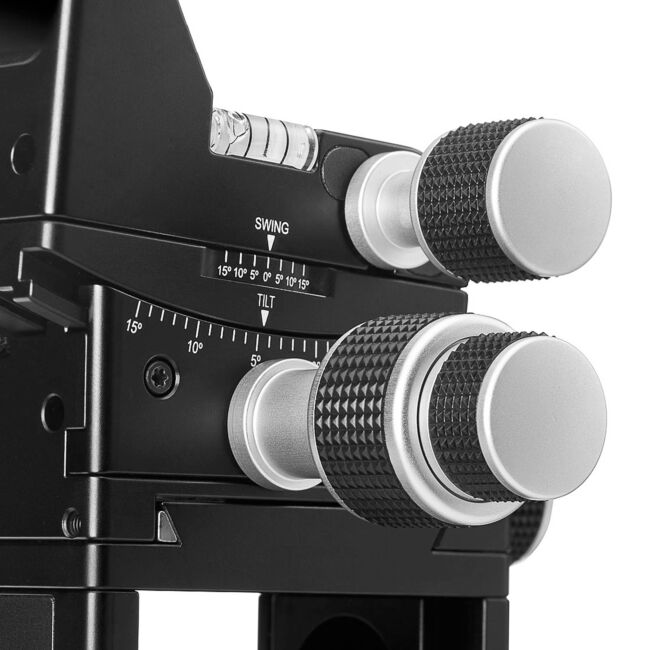

• Front standard offers geared tilt / swing both on-axis
• Lensplates are quickly interchangeable
• Quick slide focus adjustment rail
• Fine focus adjustment with precision gearing

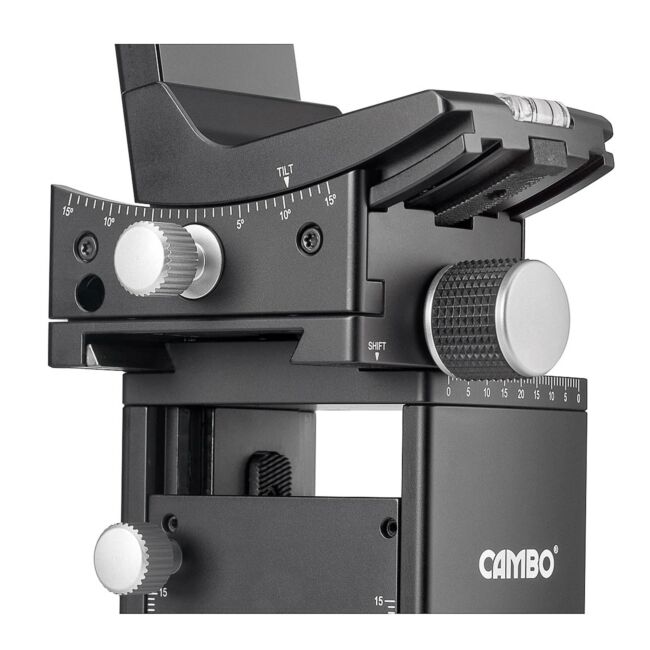

• Shift movements vertical/horizontal in the focal plane
• Horizontal movements using quick sliding
• Zero clicks on all movements

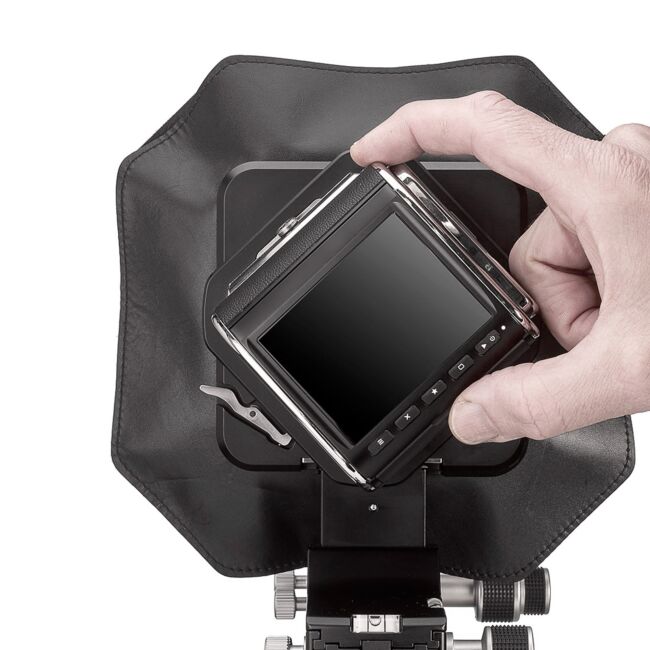

• Image centred rotation from landscape to portrait
• Arca compatible monorail, direct fit to Arca compatible heads such Cambo CBH-6
• Exchangeable bayonets for Sony E-Mount, Nikon F, Canon EOS, Fuji X-series, Micro 4/3, Olympus OMD
Cambo ACTUS-G Specifications
- Movements: Geared
- Front standard tilt: 15°/15°
- Front standard swing: 30°/30°
- Rear standard tilt: 15°/15°
- Front and Rear Standard Horizontal shift: 20mm/20mm
- Rear Standard Rise/Fall: 15mm/15mm
- Front Standard Rise/Fall: 15mm/15mm
- Weight Compensation: On Rise/Fall (front & rear)
- Friction knobs: On camera movements
- Fine Focussing: Dual ratio gear
- Dual Ratio Gears: For Tilt and Focus
- Max. extension (standard rail and bellows:) 298mm (2x 70mm geared / 158mm telescopic)
- Dimensions: 20 x 12 x 28cm (w/o rail and with DB frame)
- Weight: 2.8 Kg
