ARCA-SWISS

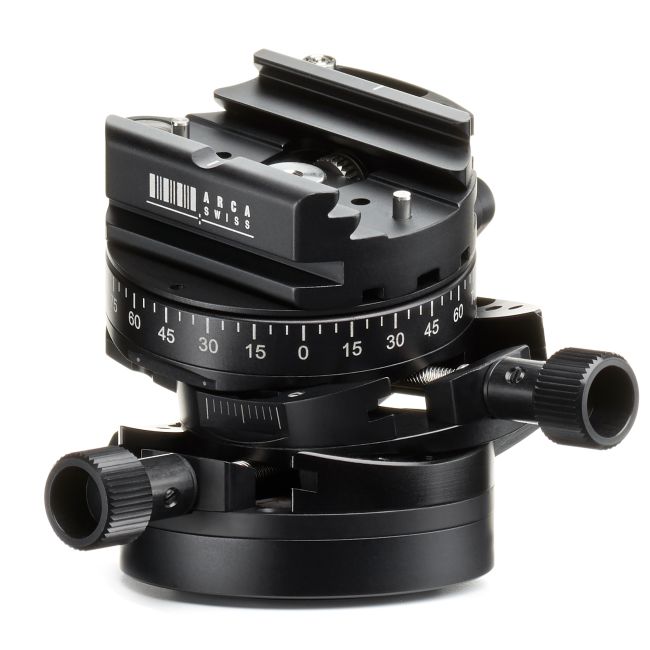

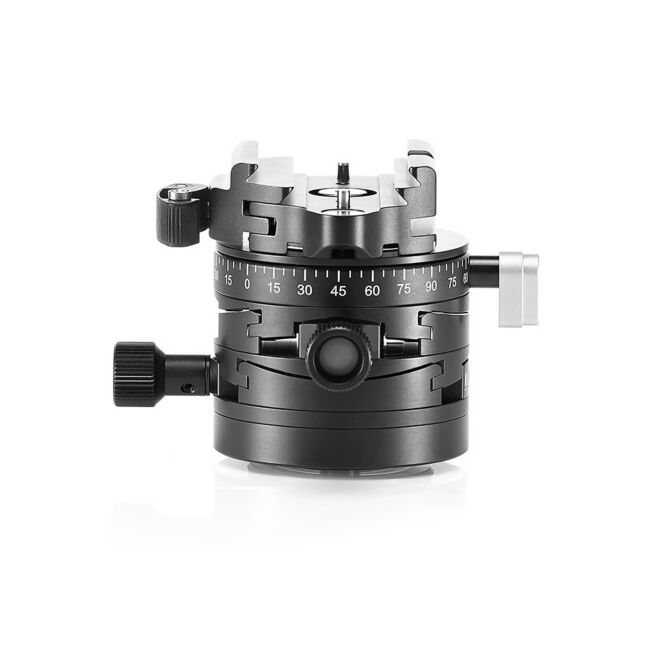

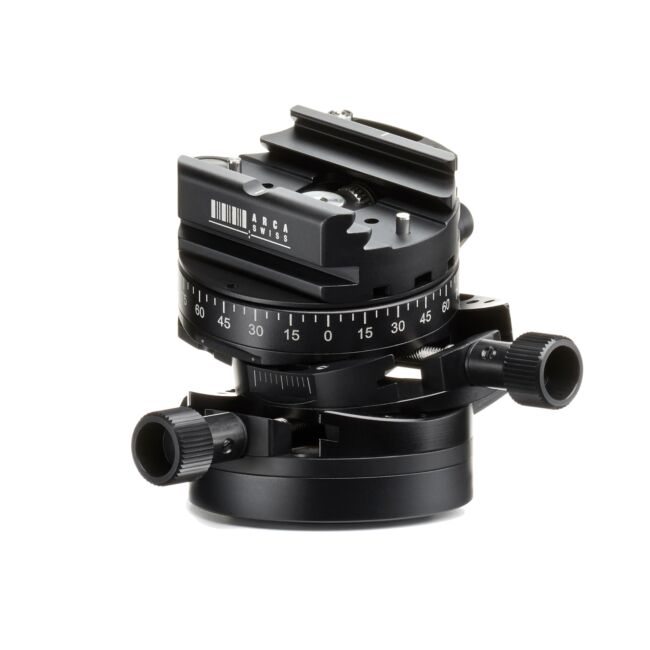

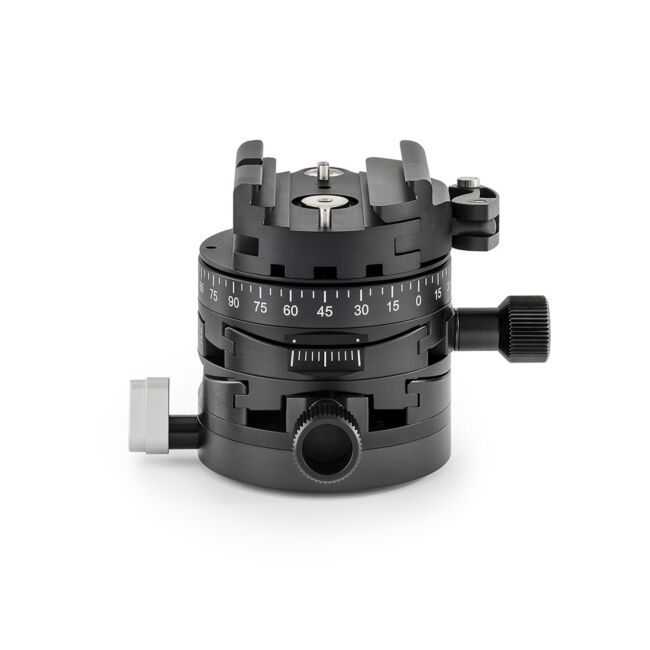

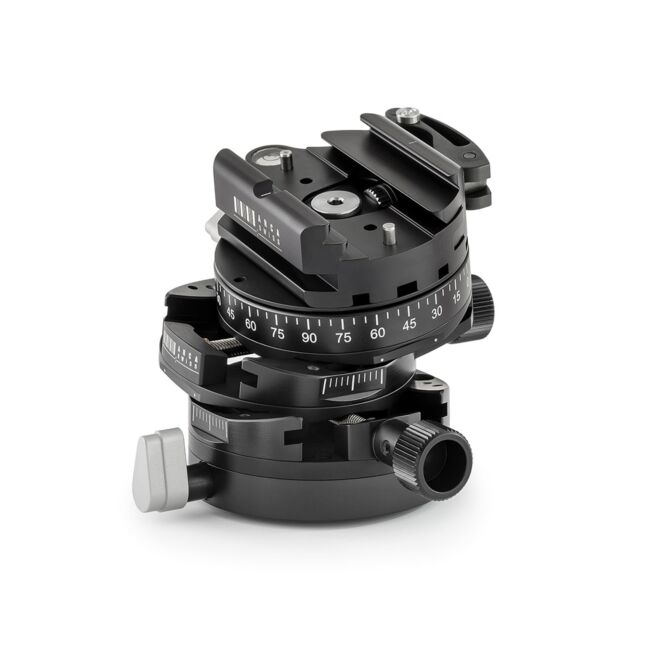

ARCA-SWISS - Core 60 leveler geared tripod head with flipLock® release

$1,122.00

The Core 60 leveler from ARCA-SWISS features many of the most loved aspects of the Cube series in a sleek, small package.

With 10° tilt in both X/Y planes it offers satisfying and precise levelling for technical camera work. The unique design (like the Cube) keeps the camera centred over the tripod rather than tilting forward and backwards or left and right so that the relationship between the subject and the image plane is maintained, and the camera weight is centrally distributed.

ARCA-SWISS Core 60 Leveler Head with flipLock® Quick Release features a flip lock release for the camera plate.

— Quick levelling for architectural or tech camera work
— Self-locking, micro-metric geared movements
— Works well with mirrorless, medium format and view cameras
— Horizontal tilt +/- 15°, vertical tilt +/- 15°
— Dual panning mechanisms - 360° base and top pan
— Telescoping knobs for ease of use when fully tilted
— flipLock® quick release
— Load capacity: 20kg
— Weight: 60g

NB: ARCA-SWISS tripod heads do not come with a camera plate, please select an appropriate camera plate or L-bracket from the Related Products below.

Product code ARC-860103

The ARCA-SWISS Core 60 Leveler Head with flipLock® Release features:

  • movements which keep the camera’s image plane centralised
  • precise geared separate X/Y adjustment with 10° of motion
  • panning provided above the levelling gears allows for panorama movement in correct alignment

Weight: 460g
Payload: 20kg

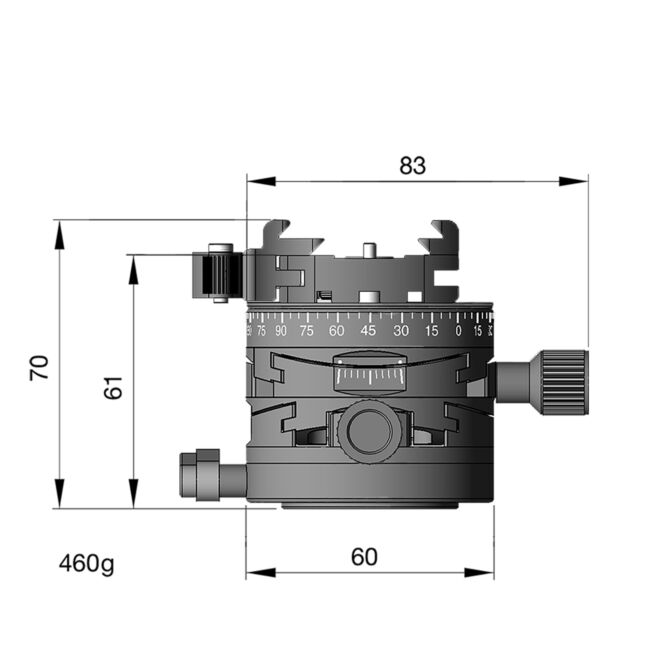

Dimensions: 70 x 83 x 60mm

The ARCA-SWISS Core 60 Leveler Head is perfect for reproduction as well as architecture and interiors where only a small degree of very precise levelling is required.
